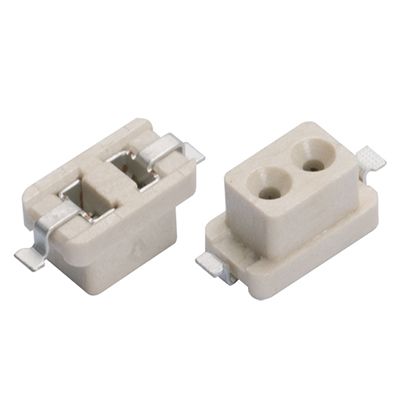

L055AFV Led bulb connector 2.54mm Pitch Beige 2 pole

Similar products：

∧ ∨

Part Number: L055AFV

Mounting Type: Surface Mount

Package available:  Reel and tape

Lead time:  2-15days

Detailed Description:quick insert connector,led strip connector,led light connector,3 pin led strip connector


View video Send message Inquiry

Product details

-

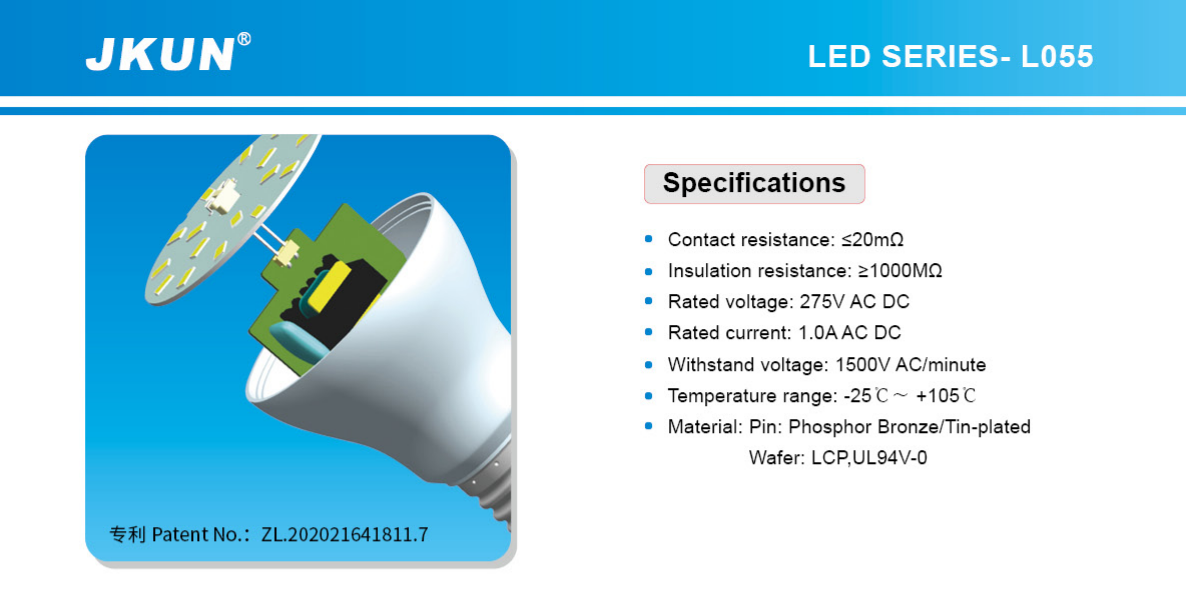

Technical Parameters

Pitch:2.54mm

Rated voltage:275V AC DC

Poles:2P

Rated current:1.0A AC DC

Contact resistance:≤20mΩ

Withstand Voltage:1500V AC/minute

Insulation resistance:≥1000MΩ

Temperature Range:-25℃～ +105℃

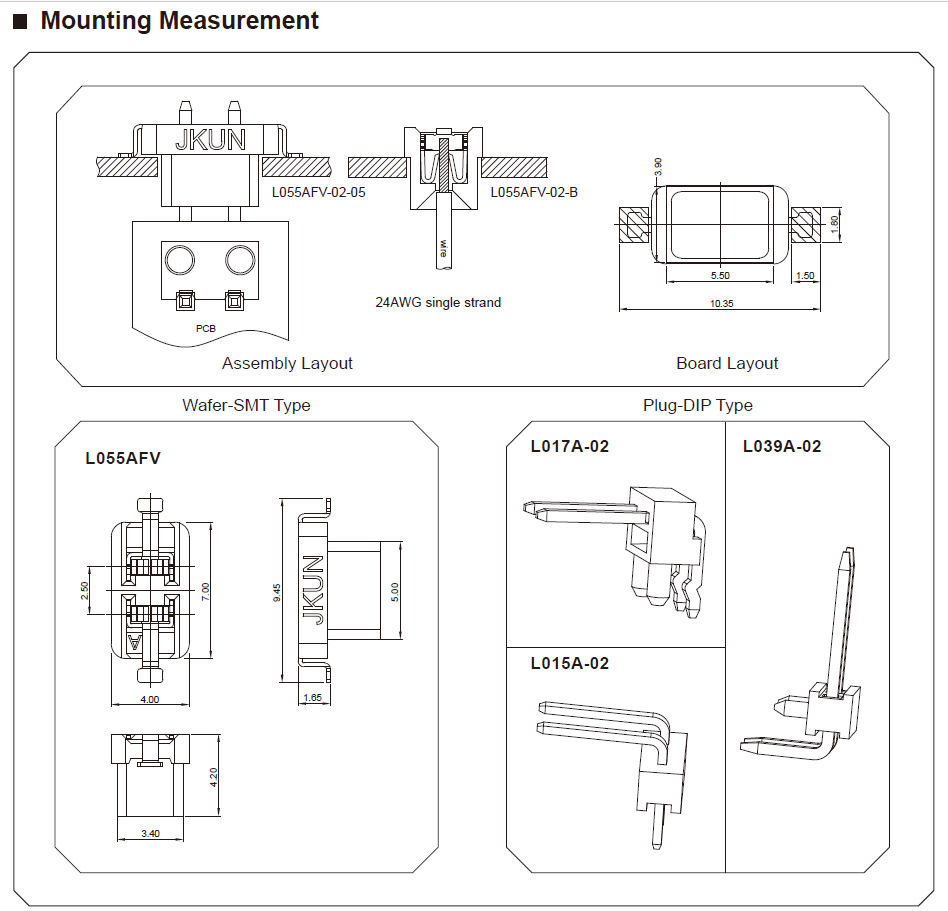

Please click "download"to get the detail engineering drawings

And contact us to get the samples free

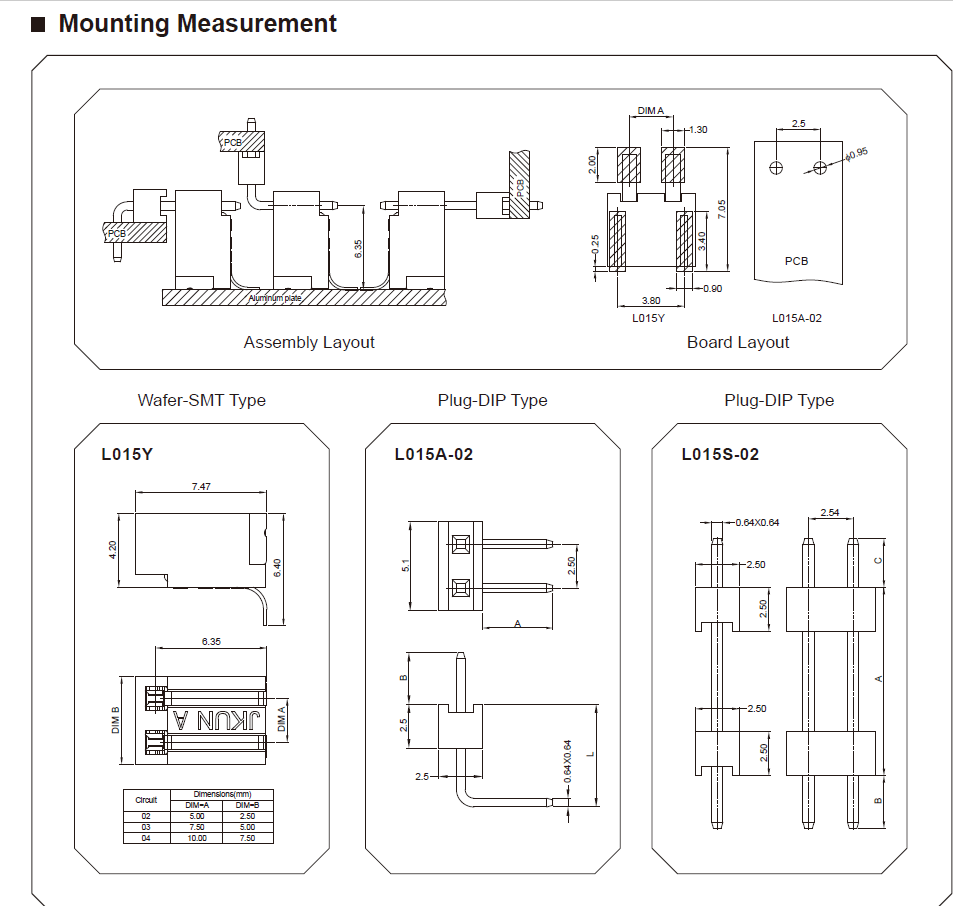

                              ※TIPS：  L015 +L055 is widely applied in LED BULB lighting connector,board to board connector





Mating products

-

Related products

Application

-

Related Application

Download

-

PDF file

  • L055AFV-02-F2MB1-R-5 方孔插针
  • L055AFV-02-F2MB1-R-B 圆孔插线
.
